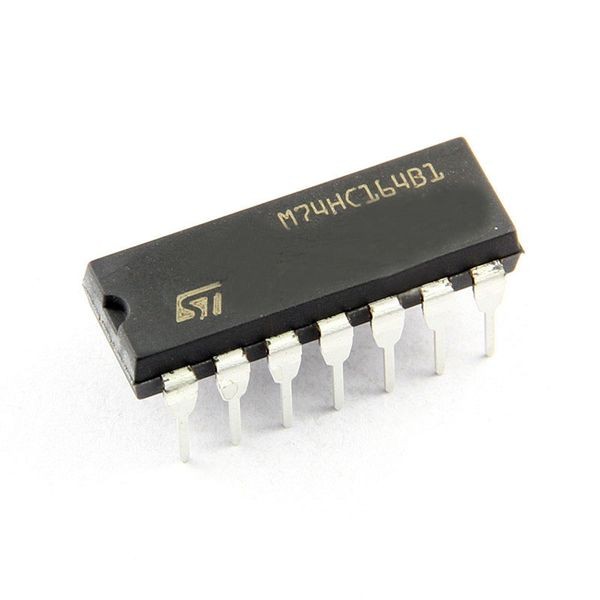

Registro a scambio SIPO 8 bit

Caratteristiche

• Number of Element Inputs 2
• Number of Count Input Enables 0
• Number of Element Outputs 8
• Process Technology CMOS
• Number of Stages 8
• Direction Type Uni-Directional
• Number of Selection Inputs per Element 0
• Minimum Operating Temperature (°C) -55
• Maximum Operating Temperature (°C) 125
• Packaging Tube
• Reset Type Asynchronous
• Terminal Count Output No
• Triggering Type Positive-Edge
• Absolute Propagation Delay Time (ns) 265
• Maximum Propagation Delay Time @ Maximum CL (ns) 160@2V|32@4.5V|27@6V
• Propagation Delay Test Condition (pF) 50
• Maximum Quiescent Current (mA) 0.004
• Parallel Enable Input No
• Minimum Operating Supply Voltage (V) 2
• Typical Operating Supply Voltage (V) 2.5|3.3|5
• Maximum Operating Supply Voltage (V) 6
• Mounting Through Hole
• Package Height (mm) 5.1(Max) - 0.51(Min)
• Package Length (mm) 20(Max)
• Package Width (mm) 7.1(Max)
• PCB changed 14
• Standard Package Name DIP
• Supplier Package PDIP
• Pin Count 14
