Descrizione

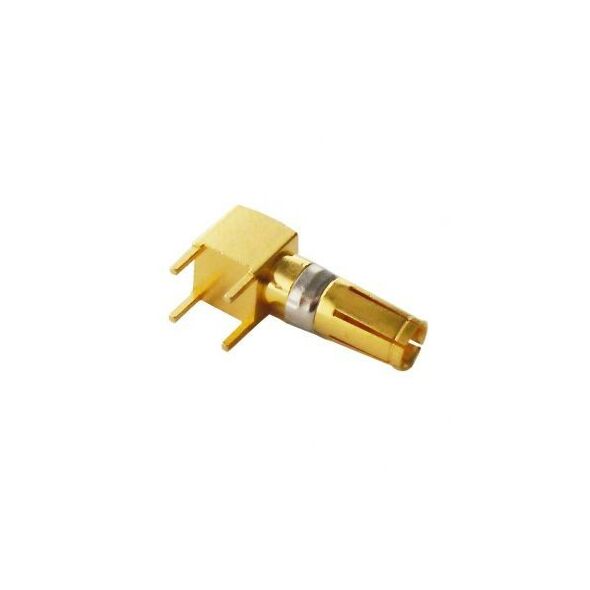

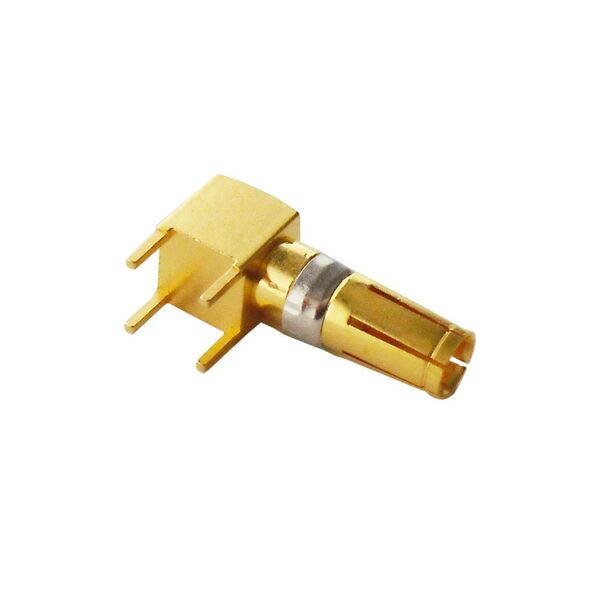

Connettore RF jack per circuito stampato
- Part. n. 50K202-440H
- Applications: RF and Microwave Connectors
- Connettore: femmina
- Tipo terminazione: saldare
- Produttore: Rosenberger HF-Technik
TECHNICAL DATA SHEET Power Insert DIN 41626 RIGHT ANGLE JACK PCB
Connector parts Socket contact Connector body Clip Material Spring bronze Brass Beryllium copper Plating Gold, min. 1.27 µm, over nickel Gold, 0.2 µm min. Nickel, 2.5-5 µm
Rosenberger Hochfrequenztechnik GmbH & Co. KG P.O.Box 1260 D-84526 Tittmoning Germany www.rosenberger.de
Mating cycles Connector captivation in plastic Engaging force Disengaging force 1.6 N
Temperature range Climatic class Max. soldering temperature to +125°C IEC 60068-2-1 55/125/21 IEC 60068-2-2 IEC 60068-2-3 IEC 61760-1, +260°C for 10 sec.
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our products, we reserve the right to make changes judged to be necessary.
