Descrizione
HVR: SUPPORTA FINO A 16 CH 5M-N AHD E 4CH IP A 2MP CONTEMPORANEMANETE
H.265+ 5M-N/1080N
SCARICA IL MANUALE ITALIANO
CANALI AHD/IP
Caratteristica
Supporto H.265 + codifica, bitrate ultra-basso, compatibile con H.264 dintorni;
Supporto VGA, uscita HDMI full HD contemporaneamente;
Supporto ONVIF; accesso di terze parti; Supporta la tecnologia cloud multipla, la penetrazione della rete, le informazioni di allarme inviate al telefono e altre funzioni;
Supporto web, CMS, centro software di gestione della piattaforma MYEYE, fornire sviluppo SDK;
Supporta vari monitoraggio mobile (iPhone, Android);
Accesso remoto, con DNS (ARSP), facile da monitorare da remoto
Supporto UTC, segnale di controllo e flusso video trasmettere attraverso un singolo coassiale
Supporto XVI/AHD/TVI/CVI/CVBS/IP sei segnali;
Supporta l'analisi intelligente: rilevamento umano, rilevamento facciale.
Specifications:
|
Model |
8116X-E |
System |
Main processor |
Technical grade embedded microprocessor Taiwan NT98312 |
Operating system |
Embedded LINUX operating system |
|
System resource |
Multi-channel real-time recording synchronously,multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
|
Interface |
Operation interface |
16bit real color GUI interface support mouse operation |
Display screen |
1/4/8/9/16screen (take analog channel as an example,other is base on the selected channel mode) |
|
Video |
Video standard |
PAL/NTSC |
Image encode |
H.265+ |
|
Monitor quality |
VGA ; HDMI(max 4K) |
|
Preview |
16*5M-N@12fps (6 in 1)/16*4M-N@15fps (6 in 1)/16*1080P@15fps ( XVI) |
|
Recording |
16*5M-N@6fps (6 in 1)/16*4M-N@8fps (6 in 1)/16*1080P@8fps (XVI) |
|
Playback |
8*5M-N@6fps (6 in 1)/16*4M-N@8fps (6 in 1)/16*1080P@8fps (XVI) |
|
Multi-mode video input |
AHD/XVI/TVI/CVI/ANALOG:16*5MP-N(6FPS)/16*1080P(8FPS) for XVI camera HVR:16*5M-N(5IN1)+4*1080P(IP) NVR:16*1080P;4*5M |
|
Motion detection |
Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only) |
|
Audio |
Audio compression |
G711A |
Bidirectional talk |
Support |
|
Record and playback |
Record mode |
Manual>alarm>motion detection>timing |
Local playback |
8ch playback synchronously |
|
Video search |
Time、date、event、channel search |
|
Storage and back up |
Video storage |
Local HDD 、Network |
Back up mode |
Network backup、USB portable HDD、USB imprint、SATA imprint |
|

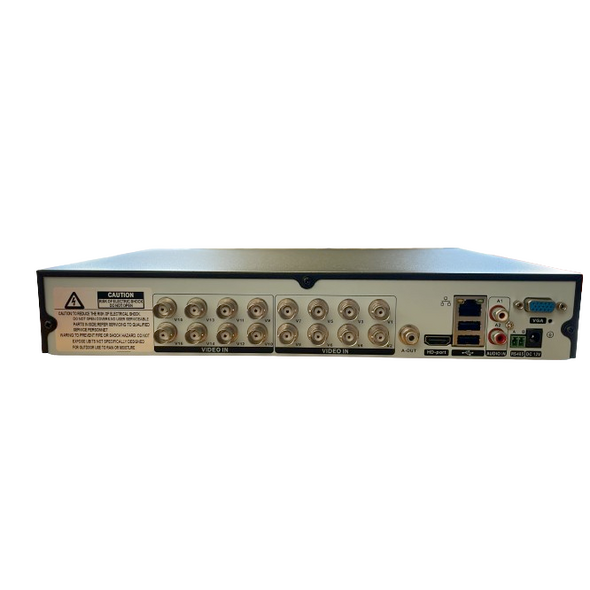

Interface |
Video input |
16CH BNC(1.0Vp-p,75Ω) |
Video output |
1CH VGA,1CH HDMI |
|
Audio input/output |
2CH input /1CH output RCA(200-3000mV,5KΩ) Support Coaxial audio function |
|
Alarm input/output |
Optional,can expand to 4ch alarm input,1ch output |
|
Network port |
RJ45 10M/100M self-adaptive Ethernet port |
|
PTZ control |
1 RS485 interface,support UTC,coaxial control; |
|
USB port |
2*USB2.0 |
|
HDD port |
2 SATA ports(each max to 8TB) |
|
Wireless port |
3G、WIFI(extension via USB port) |
|
Other |
Power |
DC 12V |
Consumption |
<15W(not including HDD) |
|
Temperature |
0℃-+55℃ |
|
Humidity |
10%-90% |
|
Atmosphere pressure |
86kpa-106kpa |
|
Dimension |
L325*W250*H52MM |
|
Weight |
1.6KG |
